Brand Name : Sanheng
Model Number : KVV Control Cable
Certification : IEC 60552,GB/T9330-2008
Place of Origin : Henan, China
MOQ : 1000M
Price : KVV
Payment Terms : L/C,D/P,D/A,T/T,Western Union
Supply Ability : 100000 meter /1 Week
Delivery Time : 5-15Days






item | value |
Place of Origin | China |
Henan | |
Brand Name | Sanheng |
Model Number | KVV Control Cable |
Insulation Material | PVC |
Type | LOW VOLTAGE |
Application | Signal transmission |
Conductor Material | Copper |
Jacket | PVC |
Product name | KVV Signal Control Cable |
Core | 2-61 cores |
Rated voltage | 450V/750V |
Application | Signal transmission |
Conductor | Copper |
Insulation | PVC |
Packaging | Woven Bag Wooden Wheel |
Color | Brown, blue, grey, etc |
Certification | IEC 60552,GB/T9330-2008 |
Sample | free offer |


Cross-section | Conductor Construction | External diameter | Conductor resistance at 20 °C | Insulation resistance at 70 °C | Short circuit current 1s | Permited tensile load | Cable weight |
nominal | min-max. | max. | min. | nominal | max. | cca | |
mm² | n x mm | mm | Ω/km | MΩkm | kA | N | kg/km |
1 x 1,5 | 1 x 1,38 | 5,2 - 6,2 | 12,10 | 0,0100 | 0,17 | 75 | 45 |
1 x 2,5 | 1 x 1,78 | 5,8 - 6,8 | 7,41 | 0,0094 | 0,29 | 125 | 70 |
1 x 4 | 1 x 2,26 | 6,4 - 7,6 | 4,61 | 0,0087 | 0,46 | 200 | 80 |
1 x 6 | 1 x 2,70 | 6,8 - 8,2 | 3,08 | 0,0074 | 0,69 | 300 | 105 |
1 x 10 | 1 x 3,5 | 8,0 - 9,4 | 1,83 | 0,0072 | 1,15 | 500 | 155 |
1 x 16 | 7 x 1,70 | 9,4 - 11,0 | 1,15 | 0,0053 | 1,84 | 800 | 230 |
1 x 25 | 7 x 2,13 | 12,2 - 13,3 | 0,73 | 0,0051 | 2,88 | 1250 | 325 |










|
|

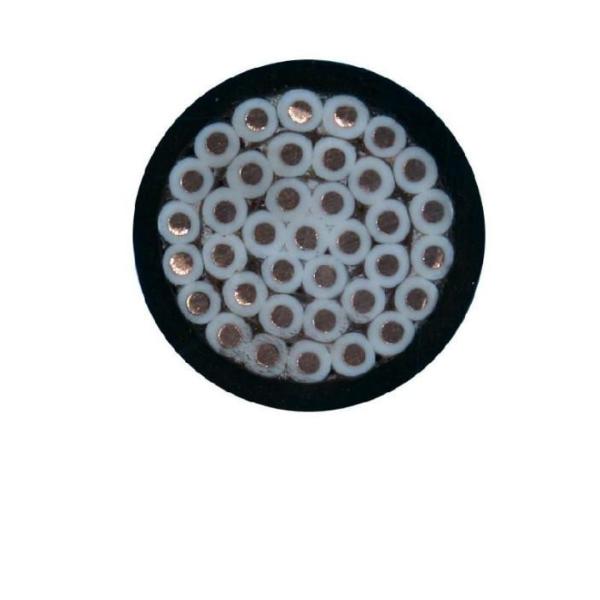

High Quality Multi Core 450/750V KVV Signal Flexible Control Cable Copper Conductor Images |
